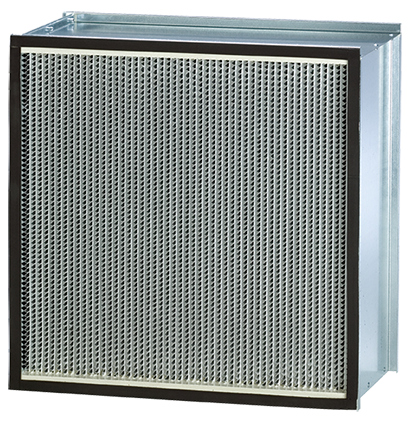

AstroCel I 14A74J1T2H0 High Efficiency Particulate Air (HEPA) filters are the most efficient air filters commercially available. They have broad application in cleanrooms and other areas requiring the very highest levels of contamination control.

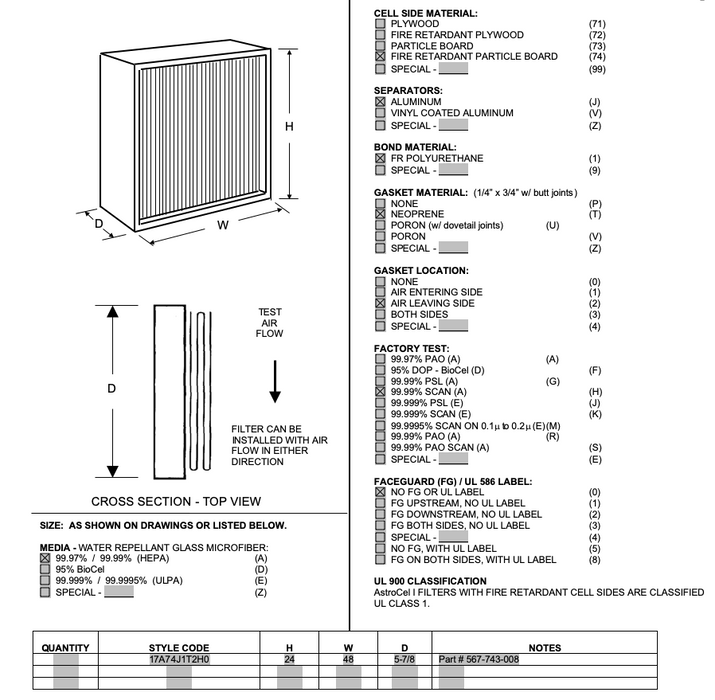

HEPA Filter Build Specifications
- Fire Retardant Particle Board Frame
- Aluminum Separators
- FR Polyurethane Bond Material
- Neoprene Gasket
- Air Leaving Side Gasket Location
- 99.99% Scan Factory Test
- No Faceguard or UL label
- Height 24", Width 24", Depth 5-7/8"
Performance & Applications
The AstroCel I filter is available in a variety of efficiencies, including 99.97%, 99.99% and 99.999% on 0.3 micrometer particles, and is also available with laser scanned factory certification.

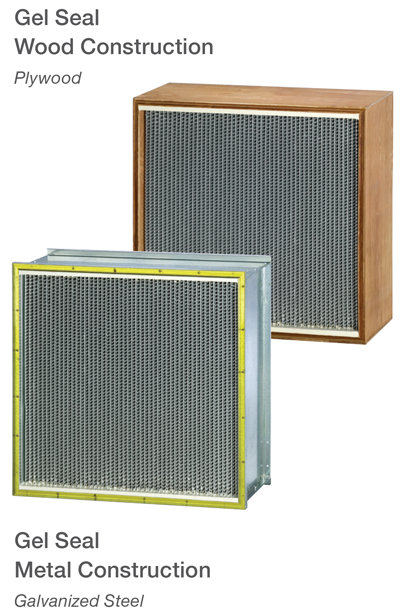

AstroCel I HEPA filters are used primarily in cleanrooms and clean zones, which require the very highest levels of contamination control. The filter consists of water-proofed, fire-retardant fiberglass media formed into a series of pleats. Corrugated sheets of aluminum separate the pleats to permit maximum usage at minimum resistance. Gasketing is available on the upstream, downstream, or both faces. Extractor clips are available for gel seal Astrocel I HEPA filters, for Bag In/Bag Out housings.
Energy Saving Design

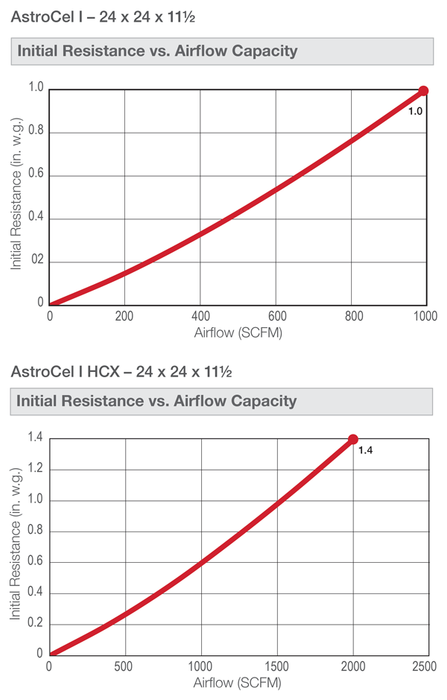

The pleat openings and exits of the Astrocel I filter deliver low entrance and exit losses. This, combined with less restriction from separator material and better media utilization, delivers a low pressure drop. The high capacity (HCX) model utilizes tapered separators, which allow a doubling of airflow with only a 40% increase in resistance. The lower operating resistance reduces operating costs and saves energy.
Antimicrobial Treated Media
Optional antimicrobial traps and concentrates particulate air contaminants to improve Indoor Air Quality (IAQ) while preserving the integrity of the media.
Important Notes
This filter is considered a custom product. Orders must be cancelled within 24 hours. No refunds or exchanges. Our quotes from AAF Flanders are only valid for 30 days. We reserve the right to notify you of any price changes after an order is placed. If there has been a price adjustment in the quote you will have the option to cancel the order.
Lead Times
Since this is a custom made HEPA filter lead times can range from 4-8 weeks for production and testing. Once the order is confirmed with the plant it will be scheduled for an estimated completion date that we will monitor.
