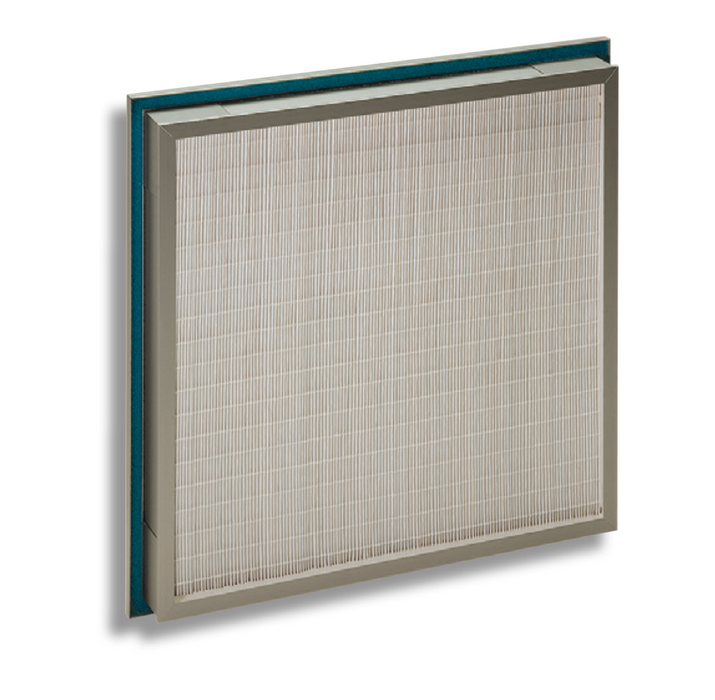

BioMAX CS HEPA Filters
BioMAX CS filters are engineered to provide the optimum combination of efficiency and airflow. They are used in a wide range of applications, including pharmaceutical facilities, hospitals, biotech laboratories and other environments where control and removal of airborne contaminants is of paramount importance in the protection of people, processes, and equipment.
Compact Minipleat Design Saves Energy
BioMAX CS filters are manufactured with a specialized thermoplastic adhesive bead (no aluminum separators) to maintain proper pleat separation and full utilization of the filter media. Precise spacing of the glue-bead separators ensures low resistance to airflow and reduced energy costs to the user.
Reverse Gel Seal
Constructed with built-in gel channel located at the back of the upstream side of the filter. Placing the channel in this position enables the BioMax CS filter to fit into the housing to save space. Access to the filter is from the room side of the unit. Designed for housings and ducted modules equipped with a knife edge seal. The knife edge inserts and submerges into the gel seal on the filter to prevent leakage. Excellent replacement filter for permanently installed ducted ceiling modules. BioMax CS with Reverse Gel Seal are available in a cell side (filter frame) depth of 2.875.
